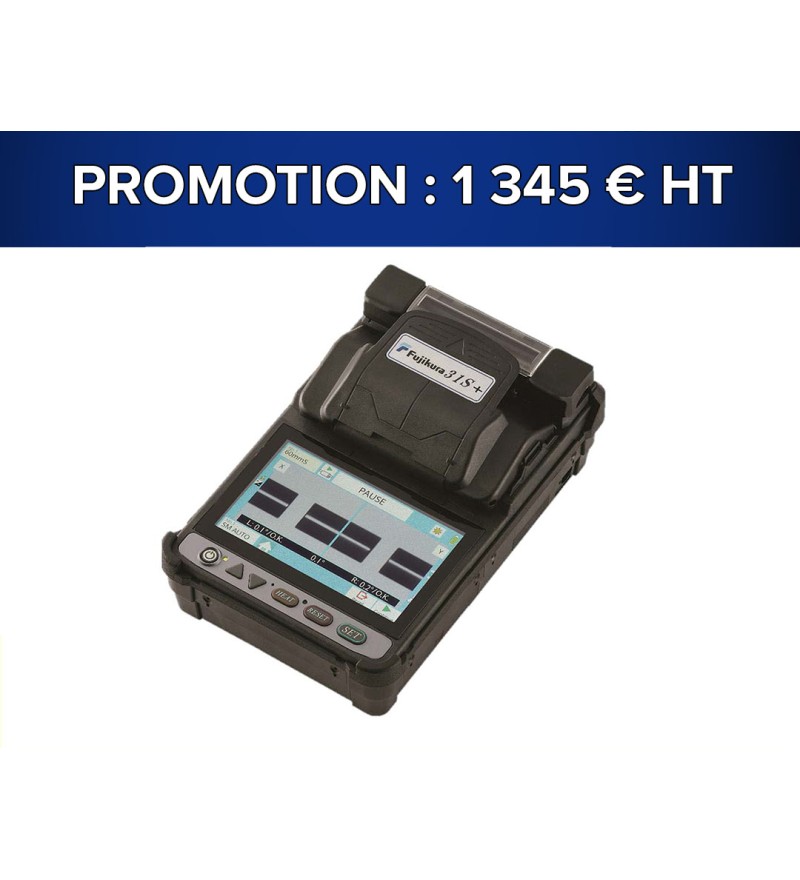

FUJIKURA 31S+ Fusion Splicer


The Fujikura 31S+ is the FTTH Active V-groove splicer

  • Two-camera active v-groove alignment
  • 5" touchscreen monitor
  • Interchangeable sheath clamps and fiber holders
  • Fully ruggedized for shock, moisture and dust resistance

For any questions, contact us via our contact form.


Distributor in France and in 20 African countries


Distributor of Fujikura splicers for over 25 years


Distributor partner of VIAVI for over 15 years

The Fujikura 31S+ is a fully ruggedized, active cladding alignment fusion splicer. The dualcamera active V-groove alignment system provides consistent splicing performance in the most challenging conditions.
A 6-second splice time and 25-second shrink time offers unmatched speed and productivity, while an easy-to-use touchscreen monitor provides simple and intuitive menu navigation.
Interchangeable sheath clamps or fiber holders provide versatility for user preference, and compatibility with fusion-installable connectors.
The extended-life battery is rated for up to 200 splice and heat cycles. Long-life electrodes, lasting 5,000 splices, help minimize downtime for replacement and stabilization. The large 5" monitor provides a crystal clear image, even in the brightest sunlight. Software updates are accomplished via the internet allowing users to quickly update their software as new splice programs become available.

Backed by the best service team in the industry, the Fujikura 31S+ is the ideal splicer to use when portability, ruggedness, and reliability are needed for your splicing application.

Fujikura 31S+ is associated with cleave Fujikura CT08 (to be chosen)

Fujikura 31S+

Data sheet

FTTx, LAN, Data Center, Access Network
Active V-groove (X,Y,Z alignment)
Splicing time
6 s
Heating time
25 s
Automated wind protector and tube heater
Number of splice per full battery charge
Electrodes lifetime
5000 arcs
1300 g
Dimensions (L x H x P)
131x 201 x79 mm
Typical insertion loss splicing G651
0,01 dB
Typical insertion loss splicing G652
0,03 dB
0,05 dB
Typical insertion loss splicing G655
0,05 dB
Typical insertion loss splicing G656
0,03 dB
Typical insertion loss splicing G657
0,03 dB
