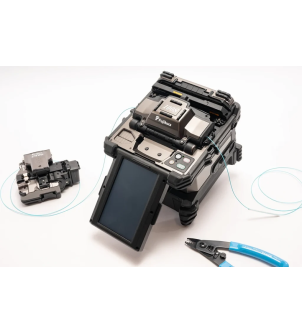

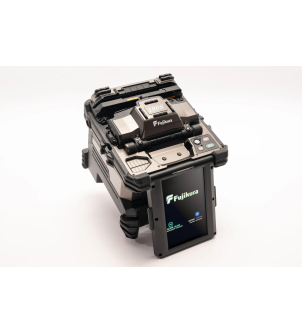

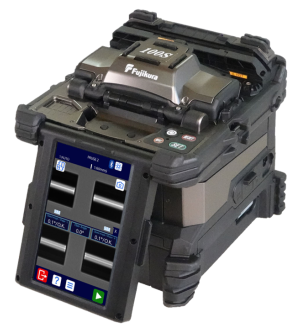

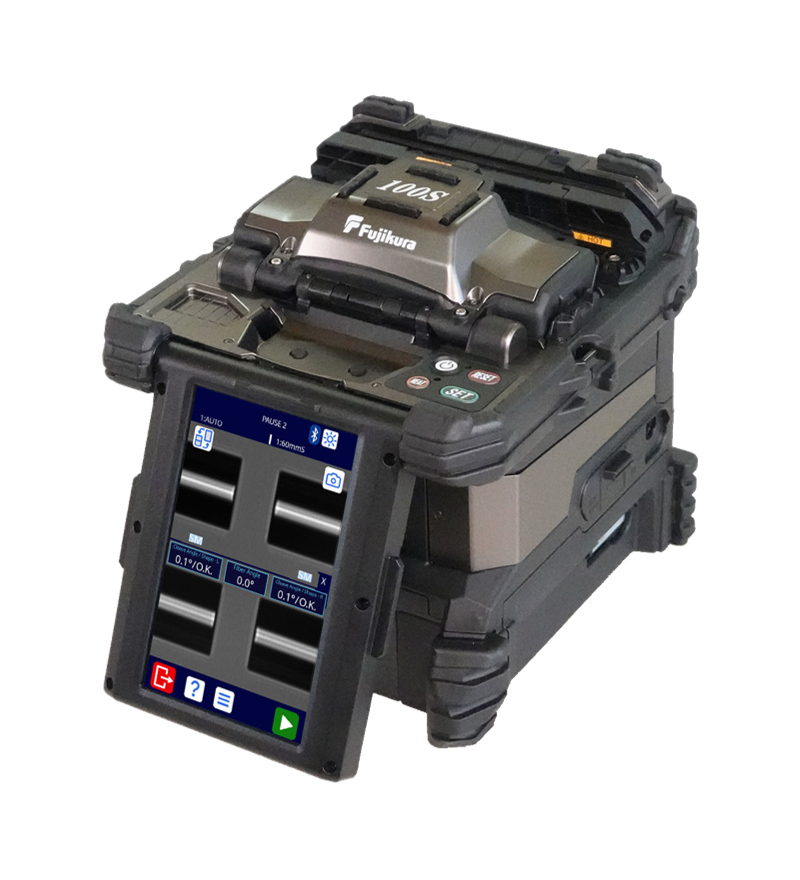

FUJIKURA 100S Fusion Splicer

Faster, easier, changing the field use with advanced fusion splicers.

FEATURES

Simultaneous fibre preparation—stripping, cleaving & placement

in the splicer—create a smooth workflow and speeds up the splice

process time by 20%.

Adjustable colour touch screen customisable automated features

and new fibre guides.

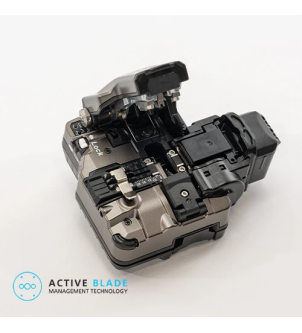

Active Fusion Control and Active Blade Management technologies.

MAJOR IMPORTER OF TELECOM EQUIPMENT

Distributor in France and in 20 African countries

OFFICIAL FUJIKURA IMPORTER

Distributor of Fujikura splicers for over 25 years

VIAVI ELITE DISTRIBUTOR

Distributor partner of VIAVI for over 15 years

Improvement of ease of use

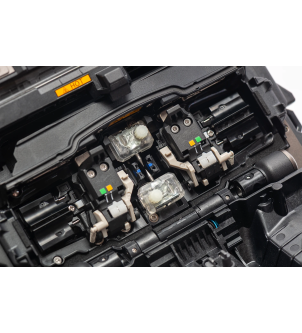

Simplified optical fiber set using the finger placement guide.

A V-shaped guide has been added to the optical fiber setting area. By aligning your finger with the guide, it has become easier to place the optical fiber accurately.
By changing the shape of the set section, it is also possible to use it without a guide. Customers can choose the option that is easier for them to use.

Expanded allowable range for fiber setting

It is possible to splice when the optical fiber tip extend beyond the electrode.

Wind protector with automatic open and close function.

After optical fiber setting, the wind protector automatically closes and opens automatically once the splicing process finishes. Similarly, the heating lid and heater clamp automatically close after optical fiber setting and open automatically after heating is completed.

Carrying case with Work Tray

Carrying Case

There are multiple ways to utilize the 100S fusion splicer carrying case. The 100S fusion splicer is ready to use just by opening the case, but it is also possible to use the 100S fusion splicer on top of the carrying case or only with the work tray depending on the work environment.

Work Tray

The work tray has many functions. Since the work tray is separable, it allows for work in confined spaces while also being expandable to create a larger workspace, making it a highly versatile. Additionally, it is possible to charge the 100S while it is placed on the work tray.

User-friendly features

GPS

The 100S is equipped with GPS.
It acquires and stores the location information at the time of splicing in its memory. By verifying the splice locations along with the fusion results, it helps with daily workflow management.

Linked with smartphone app

With the app Splice+, you can view the location information and splice results.
Additionally, it equipped with a locking function to prevent theft.

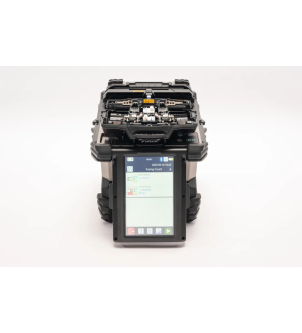

Splice Coach function

Step-by-step instructions appear on the screen, allowing for seamless and confident work.
For those who do not require the Splice Coach display, it can be turned off in the settings.

Example) Fiber Preparation procedure
