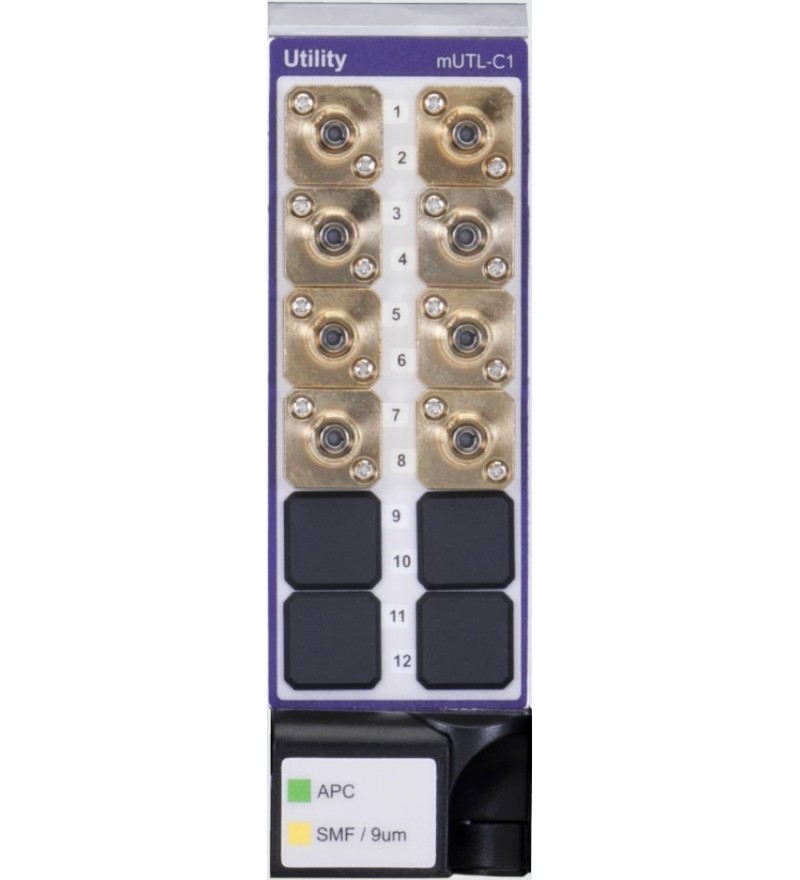

MAP Passive Utility Module (mUTL)

Simplified Component Test Management LightDirect module for MAP Series Platform

The MAP Passive Utility Module, mUTL-C1, provides a range of passive optical devices such as couplers, splitters, Mux/Demux modules and band-pass filters to simplify the integration of these devices into automated test systems


For any questions, contact us via our contact form.

  MAJOR IMPORTER OF TELECOM EQUIPMENT

Distributor in France and in 20 African countries

  OFFICIAL FUJIKURA IMPORTER

Distributor of Fujikura splicers for over 25 years

  VIAVI ELITE DISTRIBUTOR

Distributor partner of VIAVI for over 15 years

The Multiple Application Platform (MAP) Passive Utility Module, mUTL-C1, is designed to simplify the mechanical integration of passive optical components into large automated test systems. A range of passive devices are available including single-mode and multimode optical couplers, Mux/Demux modules for 40G and 100G Ethernet, a quad wavelength filter for shaping ASE spectrum as well as a bulkhead-adapters only module for mechanical mounting of user supplied components. All modules are available with any of six optical connectors types.

Highlights

  • Mechanically robust integration of fiber optic couplers, splitters and mux/demux components into larger integrated test environments
  • Compact design with 12 bulkhead connectors enables packaging of up to four 3-port couplers
  • Bulkhead only versions available for mounting user supplied components
  • Single-mode or multimode component options.
  • Multimode components are modally transparent
  • Ideal for individual lane testing on WDM signals on next generation Ethernet optical formats like 100GE

Applications

  • Photonic communication test automation
  • In-line tapping of signals for power and spectrum measurements
  • Power reference branches for passive component test
  • Splitting signals for parallel test applications
mUTL-C1
