Advanced multi-purpose microscope for enhanced magnification and imaging speed.

Exceptional lighting flexibility and fully automated dual objective performance, ensures unparalleled precision and efficiency.

MTS-4000 V2 optical reflectometer package with a 4126B singlemode module

 42/40dB @1310/1550nm

Ideal for medium/long distance measurements

SmartOTDR PRO Installation, essential handheld fiber tester is an affordable, easy-to-use device for techs at any level, with robust wireless connectivity options that increase productivity anywhere

37/35dB @1310/1550

CleanBlastPRO is the latest automated fiber end-face cleaning system from VIAVI Solutions.

Rack-mounted test unit for remote BER tests

The one tool data center operators need to remotely test transmission quality of the network connecting its data centers, central offices, or head ends.

"Top of the range" fully automated fiber optic ribbon splicer with integrated heater, "clad to clad" alignment.

• Fully automated heater and Wind protector
• Splice up to 12 ribbon fibers in 11 seconds

• Tube heating in 13 seconds
• Bluetooth connectivity to control CT50 cleaver

The 90R12 is ideal for splicing ribbon cable in any conditions.

SmartClass Fiber OLTS-85/85P Optical Loss Test Sets

• Comprehensive tier 1 fiber testing to TIA/ISO/IEC standards
• Dedicated multimode, single-mode, and quad versions
• Fiber end-face inspection with automated pass/fail analysis on both local and remote devices
• Integrated saving of both local and remote results on the local device
• Encircled flux compliant
• Instant on from sleep mode
• 3.5” color touch screen
• Direct reports via FiberChekPRO™ reporting software
• All-day battery life

The fastest and easiest solutions for Tier 1 fiber certification

MTS-4000 V2 optical reflectometer package with a 4146QUAD module

37/35dB @1310/1550 et 26/24dB @850/1300nm

MTS-2000 V2 optical reflectometer package with a 4146QUAD module

37/35dB @1310/1550 et 26/24dB @850/1300nm

All-in-one network installation and maintenance test tool; Transport, Fiber, and Wireless

The VIAVI OneAdvisor 800 is designed to simplify the evolving network test needs of service providers, datacenters, field technicians and contractors as they deploy, groom, and maintain a wide variety of wireline and wireless networks.

The modular design of OneAdvisor 800 allows network technicians to easily switch between a multitude of test scenarios including transmission protocol, fiber, or over the air RF signals.

MTS-4000 V2 optical reflectometer package with a 4126A singlemode module

37/36dB @1310/1550nm - Option 40/38 dB @1310/1550nm (EXTRANGE option)

Ideal for medium distance measurements

MTS-4000 V2 optical reflectometer package with a 4126C singlemode module

 45/43dB @1310/1550nm

Ideal for long and very long distance measurements

MTS-4000 V2 optical reflectometer package with a 4138FB65 singlemode module

 42/40/40dB @1310/1550/F1650nm

MTS-4000 V2 optical reflectometer package with a 4138FC65 singlemode module

 45/43/42dB @1310/1550/F1650nm

SmartOTDR PREMIUM Installation & Maintenance, essential handheld fiber tester is an affordable, easy-to-use device for techs at any level, with robust wireless connectivity options that increase productivity anywhere

37/35dB @1310/1550

Prix Occasion 1 995 EUR H.T. (*)

Profitez de notre offre de déstockage sur le pack MTS-2000 avec son module 4126LA.

Ce réflectomètre est idéal pour les mesures courtes et moyenne distances.

Ce réflectomètre est vendu d'occasion, il sera calibré auprès du fabricant VIAVI Solutions avant sa vente.

Garantie : 3 mois.

Quantité disponible : 1

First come, First served !

 (*) Offre valable dans la limite des stocks disponibles

Benefits

• Faster - Get results faster with true automated operation in seconds
• Simpler - Simplify fiber inspection with easy automated inspection of multi-fiber, singlefiber, and duplex connectors
• Stronger - Ensure performance you can depend on with a strong and durable microscope that delivers excellence in the field
• Smarter – Achieve inspection excellence with trusted results

Features

• True Automated Inspection delivers the industry’s fastest workflow for user applications that automates every step of the inspection process.
• AutoID Inspection Tips eliminate mistakes of error-prone manual or RFID configuration when changing tips.
• PanOptic Imaging Engine ensures edge-toedge field-of-view without compromising magnification and resolution quality.
• VIAVI TPA Enabled, ensuring alignment, efficiency, and accuracy at every stage of a job with Test Process Automation.

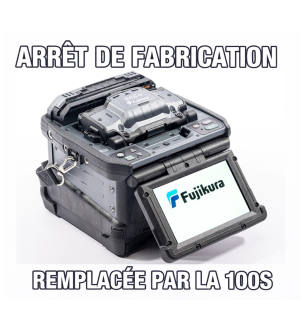

"Top of the range" fully automated fiber optic splicer with integrated heater, "core to core" alignment.
Unique specs on the market !

• Touchscreen
• Fully automated heater, Clamp, and Wind protector (possibility to use it in manual mode)
• Ultra fast splicing mode, splice in 7s and tube heating in 9s
• Bluetooth connectivity to control CT50 cleaver

True "Swiss Army Knife" of Fusion splicer, the 90S+ is ideal for connection in Industrial and Telecom environment.
It is THE NEW reference of fiber optic fusion splicer !

The FVAM-1000™ series from VIAVI Solutions sets a new standard for inspecting and analyzing multifiber connectors such as MPOs. Designed for laboratory and industrial production environments, this "all-in-one" solution ensures fast, reliable, and standards-compliant inspections, optimizing connector quality at every stage of the production process.

High Performance Inspection Solutions for Lab and Manufacturing applications

FVAi microscopes equip optical connectivity manufacturers and users with the ability to ensure clean fiber connector end-faces by detecting contamination and defects that are present.
Both manufacturers and users of optical connectivity can leverage the benefits of the FV microscopes to ensure end-face cleanliness and quality.

Benefits

• Faster - Get results faster with true automated operation in seconds
• Simpler - Simplify fiber inspection with easy semi-automated inspection of multi-fiber, singlefiber, and duplex connectors
• Stronger - Ensure performance you can depend on with a strong and durable microscope that delivers excellence in the field
• Smarter – Achieve inspection excellence with trusted results

Features

• True Automated Inspection delivers the industry’s fastest workflow for user applications that automates every step of the inspection process.
• AutoID Inspection Tips eliminate mistakes of error-prone manual or RFID configuration when changing tips.
• VIAVI TPA Enabled, ensuring alignment, efficiency, and accuracy at every stage of a job with Test Process Automation.

This DATACOM pack is ideal for certifying your Singlemode or Multimode fiber optic links.

The kit includes the Fujikura 45S splicer, the CT50 cleaver, a stripping tool, a Kevlar scissors, a fault locator pen, and a QUAD photometry kit (Singlemode & Multimode).

With the Fujikura 45S maintenance kit, you will be able to splice different types of optical fibers, quickly detect faults, and easily certify all your Singlemode and Multimode fiber optic links.

We also offer training sessions on-site, at our premises, or via videoconference.

Test Rapidly. Share Results Instantly

Optimeter takes less than one minute to certify fiber links and reduce the number of borderline installs and early install failure rates.
Light power level(s) and fiber link map are captured and saved automatically on test completion in a single test report organized by job number.

With the VIAVI Mobile Tech App, test reports can be wirelessly transferred to a smartphone or tablet and further enhanced with geolocation data, then automatically uploaded direct to VIAVI StrataSync Test Process Automation suite for KPI dashboarding and reporting.

Last Mile FTTx Test and Certification

The VIAVI SmartClass OTS-55 (optical talk set) fulfills today’s communication needs during fiber installations, maintenance or troubleshooting in a very cost effective way by using one single “dark” fiber.

The SmartOTDR is the lightweightest and most compact OTDR. It is able to speed and optimizes field testing of metro and access networks—with a tailored OTDR interface and automatic analysis that any technician can understand.

• Ensures fast and easy measurements
• One touch operation, automatic analysis, and tailored OTDR user interface for different skill level
• Manage data from anywhere in the network
• Several connectivity options (3G/4G smartphones via USB and optional Bluetooth/WiFi) enable remote control as well as data and work-order transfers to-and-from tablets, smartphones, and computers.
• Light, ultra compact, hands-free design and an extended autonomy up to 20 hours

The SmartOTDR A is the cheapest OTDR on the market!

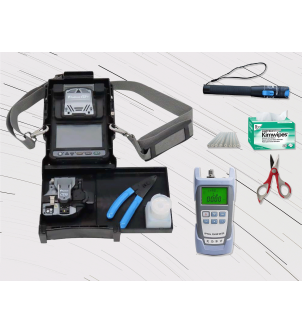

The Fujikura 45S Fusion Splicer Kit is ideal for connecting next-generation FTTH networks, including PON, G-PON, XG-PON, and XGS-PON.

The kit includes the Fujikura 45S fusion splicer, CT50 cleaver, fiber stripper, Kevlar scissors, a visual fault locator pen, and the latest-generation OLP-37X selective PON power meter.

With the Fujikura 45S maintenance kit, you will be able to splice various types of optical fibers, quickly detect faults, and measure power levels across PON, G-PON, XG-PON, and XGS-PON networks.

We also offer hands-on training sessions at your location, in our facilities, or via video conference.

The Fujikura 45S is an enhanced Active V-groove splicer

• Active Blade Management with Bluetooth capability connection
• Active Fusion Control function to better estimate Core loss estimation
• Fast splicing time 6sec
• Touch panel with easy operation
• Multi-functional carrying case with inte grated work station

The Fujikura 41S+ is an enhanced Active V-groove splicer

• Active Blade Management with Bluetooth capability connection
• Active Fusion Control function to better estimate Core loss estimation
• Fast splicing time 6sec
• Touch panel with easy operation
• Multi-functional carrying case with inte grated work station

The Sticklers™ Pro360°™ Touchless Cleaner is the future of high-performance fiber optic end face cleaning. Unlike anything else in the industry, this groundbreaking end face connector cleaning tool stands out for its ability to quickly and completely clean oils and dust across the entire end face of both male and female connector ends, with just the press of the connector cleaner handset.

• Contactless 360° Clean Full End Face Cleaning
• Cleans to the Ferrule Edge for Complete Cleaning
• Small and Portable Enough to Go Anywhere
• Multiple Size Adapters for Cleaning Flexibility
• Replaceable Cleaning Fluid Cartridge = 2,100 Cleans

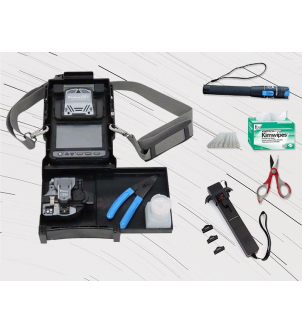

Fujikura 45S Fusion Splicer Kit, ideal for network maintenance.

The kit includes the Fujikura 45S fusion splicer, CT50 cleaver, fiber stripper, Kevlar scissors, traffic identifier, and a visual fault locator.

With the Fujikura 45S maintenance kit, you'll be able to splice various types of optical fibers, quickly detect faults, and verify signal presence using the provided tools.

We also offer hands-on training sessions at your location, at our facilities, or via video conference.

The RS03 is a thermal fiber stripper that allows to strip plastic protection of ribbon fibers

• 20% less gripping force compared to previous model
• Quiker Heating Time
• Ergonomic Design
• High capacity battery approx. 600 times
• Bluetooth capability for wireless connection with Smartphones
• Coating diameter available from 200μm to 500μm

Prix Occasion 1 295 EUR H.T. (*)

Profitez de notre offre d'occasion sur le puissance mètre optique PON OLP-87P

Il permet de mesurer de manière simultanée la puissance des signaux optiques montants et descendants sur les réseaux actifs B/E/G-PON et est également compatible avec la future génération de réseaux PON (XG-PON & 10G EPON).

Il dispose également d'un système d'inspection et d'analyse pass/fail en une solution unique et portable.

Garantie : 3 mois.

Quantité disponible : 1

First come, First served !

(*) Offre valable dans la limite des stocks disponibles

The RS02 is a thermal fiber stripper that allows to strip plastic protection of ribbon fibers

• 20% less gripping force compared to previous model
• Quiker Heating Time
• Ergonomic Design
• Bluetooth capability for wireless connection with Smartphones
• Coating diameter available from 200μm to 500μm

Prix Occasion 1 095 EUR H.T. (*)

Garantie : 3 mois.

Quantité disponible : 1

First come, First served !

The OLP-87 PON Power Meter enables simultaneous power measurement of all upstream & downstream wavelengths on live B/E/G-PON networks and is also compatible with next generation PON networks (XG-PON & 10G EPON).

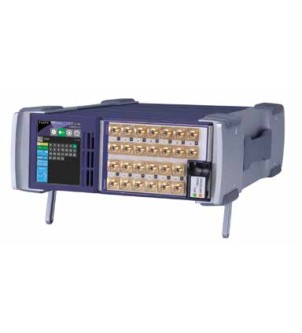

Enable high capacity automated bulk fiber testing for high fiber count cables.

Data Center high fiber count cables acceptance tests (OTDR or Bi-directional OTDR) can be performed with an automatic bulk sequence in order to accelerate the whole test’s workflow. During network construction, contractors can rapidly test many fibers remotely from a single central point (such as a local office) and optimize their resource allocation with a highly cost effective solution.

For increased versatility, it offers 48, 96, 144 or 192 ports.

The VIAVI FI-60 live fiber identifier

•  Avoid network downtime and damage with repeatable SafeChekTM easy-pull trigger system.
• Get the job done faster with a single LFI head that is compatible with multiple cable diameters (250μm to 3mm jacketed fibers).
• Increase reliability and avoid false readings with integrated ambient light shield.
• Have twice the tool at half the price! The FI-60 LFI easily converts to a full-function OPM that stores, recalls, and exports results to a PC via USB.

Live Fiber Identifier easily identifies the optical signal without having to disconnect the fiber or disrupt network traffic. Also converts to an Optical Power Meter (OPM).

The FID-30R includes an optical power meter and identify the light power presence in optical fibres, include three detecting functions: TONE, TRAFFIC, and ONU.

• Robust body design for the field
• Universal fiber clamp design applicable for many types of fibers
• 2.4" full color LCD touch screen with the backlight
• Trigger lock function for continuous fiber clamping
• Adjustable setting
• Connector head for power meter is interchangeable
• Firmware update via internet

Adapter-charger for MTS-6000

The CT50 is the new high class cleaver offering high precision cut.

• Applicable up to 12-fiber cleaving
• Automatic cleaving blade rotation via wireless communication
• User replaceable fiber clamps and cleaving blade
• 60,000 fibers blade life(3 height x 16 positions)
• Wide lever opening angle allows easy fiber placement
• Single-action operation including fiber scrap collection

Replacement Battery for VIAVI MTS-6000 OTDR

Please inquire about IATA rules when shipping by air.

Post-processing and reporting PC software to view, edit, analyze and generate accurate and updated documentation of field-acquired optical fiber test data.

• Improve productivity by reducing data post-processing time from hours to minutes
• Enables in-depth OTDR traces analysis with multiple traces management and automated bi-directional analysis
• Increase efficiency with batch processing/macro function performing automatically repetitive actions to a series of file
• Allow professional reports generation with graphical and table views and configurable format

Manage Your Optical Fiber Network More Effectively!

Replacement Battery for VIAVI MTS-4000

Please inquire about IATA rules when shipping by air.

The CT16 is the newest Fujikura cleaver .

• Rotative circular blade with 16 positions
• Unique V-grrove for 250 and 900um fibers
• Manual scrap collector
• Easy rotation of the blade

Best value for money.

The CT-08A is the newest Fujikura cleaver .

• Rotative circular blade with 16 positions
• Unique V-grrove for 250 and 900um fibers
• Manual scrap collector
• Easy rotation of the blade

Best value for money.

The official cleaning fluid engineered for use with Viavi Solutions CleanBlast™ fiber cleaning systems

Use with both the benchtop and portable CleanBlast™ systems

Quickly removes dust, lint, oil & grit from fiber end-faces

Engineered for cleaning SC, FC, ST, LC, MU, E2000 and MPO/MTP connectors

Removes dust, lint, polishing grit, oil and fingerprints

This product is no longer available, it is replaced by Fujikura CT50

Battery Pack for Fujikura fusion splicer 90S.

Please inquire about IATA rules when shipping by air.

Battery Pack for Fujikura fusion splicer 62S & 70S.

AC Adapter for Fujikura fusion splicer 62S, 70S.

AC Adapter for Fujikura fusion splicer 60S.

Universal adapter SC-APC for clips-on OTDR module

Adapter-charger for MTS-4000 & MTS-4000V2

Replacement Battery for VIAVI MTS-2000

Please inquire about IATA rules when shipping by air.

Battery Pack for Fujikura fusion splicer 31S, 41S.

Please inquire about IATA rules when shipping by air.

Battery Pack for Fujikura fusion splicer 22S.

Please inquire about IATA rules when shipping by air.

Battery Pack for Fujikura fusion splicer 12S.

Please inquire about IATA rules when shipping by air.

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans 2.5 mm ferrules in PC and APC: LC, MU: OCC-A
• 500 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator
• Practical with its extendable nozzle for difficult to access areas

An essential all-in-one tool for work in the field!

Each box contains 5 pieces

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans 1.25 mm ferrules in PC and APC: LC, MU: OCC-B
• 500 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator
• Practical with its extendable nozzle for difficult to access areas

An essential all-in-one tool for work in the field!

Each box contains 5 pieces

AC Adapter for Fujikura fusion splicer 90S.

AC Adapter for Fujikura fusion splicer 31S, 41S.

AC Adapter for Fujikura fusion splicer 12S, 22S.

Fiber holder for 12 Ribon fiber

Fiber holder for 12 Ribon fiber 200µm

Fiber holder for 12 Ribon fiber

V-grooves for 12 fiber ribbon with electrodes installed and ready to splice.

These V-grooves are field replaceable, so your downtime is minimized.

V-grooves for 12 fiber ribbon with electrodes installed and ready to splice.

These V-grooves are field replaceable, so your downtime is minimized.

Compact launch cable box for OTDR measurement.

• Small size
• Available in multimode OM1, OM2, OM3, OM4
• Customized length from 150m to 500m
• Large choice of optical connectors (SC, ST, FC, LC, E2000 / PC ou APC)

Thanks to its small size, the compact launch cable boxes are easy to pack away in OTDR soft cases.

Fiber holder for 900µm fiber.

Fiber holder for 250µm fiber.

BACK PACK VIAVI

Back Pack Professional Equipement VIAVI

Replacement Battery for VIAVI SmartOTDR

Please inquire about IATA rules when shipping by air.

Compact launch cable box for OTDR measurement.

• Small size
• Available in multimode OM1, OM2, OM3, OM4
• Customized length from 150m to 500m
• Large choice of optical connectors (SC, ST, FC, LC, E2000 / PC ou APC)

Thanks to its small size, the compact launch cable boxes are easy to pack away in OTDR soft cases.

Compact launch cable box for OTDR measurement.

• Small size
• Available in multimode OM1, OM2, OM3, OM4
• Customized length from 150m to 500m
• Large choice of optical connectors (SC, ST, FC, LC, E2000 / PC ou APC)

Thanks to its small size, the compact launch cable boxes are easy to pack away in OTDR soft cases.

Compact launch cable box for OTDR measurement.

• Small size
• Available in multimode OM1, OM2, OM3, OM4
• Customized length from 150m to 500m
• Large choice of optical connectors (SC, ST, FC, LC, E2000 / PC ou APC)

Thanks to its small size, the compact launch cable boxes are easy to pack away in OTDR soft cases.

Compact launch cable box for OTDR measurement.

• Small size
• Available in singlemode (G-625D & G-657)and multimode OM1, OM2, OM3, OM4
• Customized length from 200m to 2km
• Large choice of optical connectors (SC, ST, FC, LC, E2000 / PC ou APC)

Thanks to its small size, the compact launch cable boxes are easy to pack away in OTDR soft cases.

Compact launch cable box for OTDR measurement.

• Small size
• Available in singlemode (G-625D & G-657)and multimode OM1, OM2, OM3, OM4
• Customized length from 200m to 2km
• Large choice of optical connectors (SC, ST, FC, LC, E2000 / PC ou APC)

Thanks to its small size, the compact launch cable boxes are easy to pack away in OTDR soft cases.

Universal adapter SC-APC for screw OTDR module

Universal adapter SC-APC for OTDR module (screw type)

Circular blade for Fujikura CT-30 cleaver

Circular blade for Fujikura CT-06 cleaver

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans 1.25 mm duplex ferrules in PC and APC: LC, MU: DLC-CLK-A
• 500 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator
• Practical with its extendable nozzle for difficult to access areas

An essential all-in-one tool for work in the field!

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans CS/MDC Duplex Connector
• 500 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator

An essential all-in-one tool for work in the field!

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans  SN^® Connector
• 500 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator

An essential all-in-one tool for work in the field!

Circular blade for Fujikura CT16 cleaver

Fiber plate for cleaver Fujikura CT-08, CT-50

Fiber plate for cleaver Fujikura CT-06

Fiber plate for cleaver Fujikura CT-30

Circular blade for Fujikura CT50 cleaver

Adapter-charger for MTS-2000

Circular blade for Fujikura CT08 cleaver

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans MTRJ
• 500 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator

An essential all-in-one tool for work in the field!

Electrodes pair ELCT2-12 for Fujikura fusion splicer 12S, 22S, 11S, 21S

Electrodes pair ELCT2-16B for Fujikura fusion splicer 90S, 41S, 31S

Electrodes pair ELCT2-20A for Fujikura core to core alignment fusion splicer FSM-50S, FSM-60S and 70S.

The VFL-1mW series fault locators are high quality fault locators.
They contain the most advanced laser and microelectronic technology.

They can be connected to several types of connectors, including 2.5mm ferrules (FC, SC, ST) or 1.25mm ferrules with an additional adapter (LC, MU).

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans  MU,LC,φ1.25mm Multi-connector
• 500 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator
• Practical with its extendable nozzle for difficult to access areas

An essential all-in-one tool for work in the field!

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans 2,5 mm PC and APC: SC, FC, ST: SC-MINI-CLK-A
• Small size
• 500 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator
• Practical with its extendable nozzle for difficult to access areas

An essential all-in-one tool for work in the field!

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans 1.25 mm duplex ferrules in PC and APC: LC, MU: DLC-CLK-A
• 500 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator
• Practical with its extendable nozzle for difficult to access areas

An essential all-in-one tool for work in the field!

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans 1.25 mm ferrules in PC et APC: LC, MU: MU/LC-MINI-CLK-A
• 500 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator
• Practical with its extendable nozzle for difficult to access areas

An essential all-in-one tool for work in the field!

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans 2.0mm Multi-connector(SMPTE 304M M20-compliant)
• 500 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator

An essential all-in-one tool for work in the field!

Battery charge cord for Fujikura fusion splicer 62S, 70S.

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans 2.5 mm ferrules in PC and APC: LC, MU: OCC-A
• 77500 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator
• Practical with its extendable nozzle for difficult to access areas

An essential all-in-one tool for work in the field!

FUJIKURA One Click fiber optic connector cleaner

• A single product for both patch cord connectors and front connectors
• Cleans 2.5 mm ferrules in PC and APC: LC, MU: SCPRO-CLK-A
• 7750 cleaning operations per unit
• No equipment deterioration: One Click end of ribbon indicator
• Practical with its extendable nozzle for difficult to access areas

An essential all-in-one tool for work in the field!

The compact, 2U, two-solt MAO-220C LightDirect Chassis, mainframe is designed for general fiber-optic lab use and smaller optical manufacturer test-station deployments. The MAP-220C is as efficient and cost-effective as fixed-format versions yet maintains the flexibility and modularity so you can build the application you want, when you want. MAP-220C LightDirect Chassis users can leverage these modules in a compact, benchtop format with a simple, intuitive graphical touch screen. For larger, more complex deployments.

From the original Multiple Application Platform (MAP) System released in 2001 to the new third generation MAP-300 Series, the MAP system is the heart of the VIAVI optical test solutions for labs and manufacturing. With unmatched scalability, users can be assured that our solutions will meet their current and future needs

• Available in rackmount, reverse-rackmount and benchtop mainframe configurations
• Eight-slot (MAP-380) and three-slot (MAP-330) configurations
• HTML-based graphical user interface (MAP-300 GUI)
• Field-replaceable controller includes an integrated 3.5- inch LCD touchscreen for network and system status
• Support for USB 3.0 port, 15.6 external monitor, and ethernet
• Optional GPIB, Ethernet port, USB and additional USB and trigger modules
• SCPI logical interface for automation programming, with remote programming supported via TCP/IP (LXI) over ethernet, GPIB and direct socket
• Multi-user capability
• Hot swappable modules

Singlemode Insertion Loss / Return Loss test meter and fully EF-compliant multimode Insertion Loss test modules for use with the VIAVI advanced MAP-Series platform.

• Increases production yield by a factor of 4
• Requires only 25 percent of the space of other solutions
• Enables expansion into new high-growth, high-performance applications, such as 40/100 G data center markets
• Modular platform can scale as needs arise and budget allows
• Port mapping verifies multifiber MPO cassette continuity and polarity in less than 15 seconds
• Fully supports high-growth MPO and MTP multifiber connectors

Optical Switch Solutions built on the industry-leading, fourth-generation instrumentation class of VIAVI optical switch technology.

• Provides all optical switching, independently from data rate and transmission format
• Delivers minimal impact on dynamic measurement range regardless of switch size with low loss for all configurations from 1x2 to 1x176
• Flexible SCPI remote interface lets users program the switch using either MAP-200 style commands or maintain backward compatibility to the industry-standard VIAVI SB/SC series optical switches
• Guarantees ultra-low 0.04 dB PDL and ±0.005 dB repeatability to minimize measurement uncertainties on single-input versions
• New PTRIM option simplifies troubleshooting and measures in-line power up to 20 dB for coarse programmable loss on a connected port
• 1C, 2D (duplex), and 2E input configurations enable cost-saving architectures that reduce the number of switches required

MAP Series Distributed Bragg Reflector Laser

The Multiple Application Platform (MAP series) Tunable Distributed Bragg Reflector (DBR) Laser (mTLG-C2) is a next-generation tunable laser that is ideal for DWDM testing that requires changing the wavelength on demand over the C- and L-band with 50 GHz spacing

100 mW Amplified Emission Broadband Light Source LightDirect module for MAP Series Platform

The MAP Broadband Light Source (mBBS-C1) provides an amplified spontaneous emission (ASE) output that is ultra-stable, spectrally flattened and high-power density across the extended C-band and L-band.

Amplifier design Optimized for use in the Systems-Labor for Optical Test LightDirect module for MAP Series Platform

The MAP Series Erbium Doped Fiber Amplifiers (mEDFA-C1) meet some of the most demanding optical specifications including a low-noise version with <3.7dB noise figure. DWDM, high power and an L-band version are also available.

The Multiple Application Platform (MAP) Optical Power Meter module (mOPM-C1) is a third-generation power meter that brings a range of panel-mount and remote-head configurations with 1, 2, or 4 inputs per module Designed with 4 unique performance ranges, versions are available for all applications.

Regarding the Remots Head, its available as a premium-performance variant and a variant specifically designed for use with MAP-PCT systems, integrated remote heads provide 90º launch and ideal spherical geometry for maximum repeatability

High-resolution, wide wavelength-range attenuator ideal for use in applications such as analog systems and high bit-rate digital systems.

• Ultra low insertion loss to minimize loss budget utilization
• High accuracy and high repeatability to reduce measurement uncertainty
• Fast transition speed to reduce testing time
• Flat spectral response to reduce wavelength dependent uncertainty in multi-wavelength applications (CWDM, DWDM)
• Low backreflection to reduce instabilities due to reflected light
• Optional built-in wavelength calibrated power meter reduces the uncertainty by reducing external connections
• High input power capability for EDFA testing and multi-wavelength applications

Multi-wavelength Meter and Hi-Resolution OSA Spectral Measurement LightDirect module for MAP Series Platform

​The MAP-based integrated multi-wavelength meter and high resolution optical spectrum analyzer module combines sub-GHz resolution performance and compact modularity in a single slot cassette.

100G+ Wavelength Management Filter LightDirect module for MAP Series Platform

The Multiple Application Platform (MAP) multiport tunable filter module (mTFX-C1) dramatically simplifies test signal management for next-generation 100 G+ interfaces, sub-systems, and system test.

Family of Optical Light Sources (DFB, FP, LED, SLED) LightDirect modules for MAP Series Platform

The MAP General Purpose Light Sources (mSRC-C2) are fiber-coupled, fixed-wavelength emitters that cover key Telecom/Datacom wavelength bands of 850, 1300, 1310, 1490, 1550, and 1625 nm.

Automated Fiber Inspection & Analysis Probe provides PASS/FAIL capability to PC, laptops, mobile devices and Viavi test solutions.

• Repeatable Pass/Fail analysis eliminates subjective guesswork from the measurement process
• User-selectable acceptance profiles allow certification to any acceptance criteria
• Includes FiberChekPRO™ software for analysis and reporting with PC/laptop
• Dual-Magnification switching allows easy toggling between low & high magnifications.in both live and analysis views
• Easily connect to most of Viavi Solutions test platform via USB without the need for any additional adapters or software

The P5000i makes it fast and easy to certify that every connection in your network is clear and optimized.

High speed polarization scrambler, controller and stabilizer LightDirect module for MAP Series Platform

The MAP Polarization Control Module (mPCX-C1) provides polarization scrambling, control and stabilization for use in applications such as temporal depolarization, 100G+ coherent interface testing as well as stabilization and tracking of target SOP conditions

Automated Fiber Inspection & Analysis Probe provides PASS/FAIL and autofocus capabilities, compatible with tablets, smartphone and Viavi test solutions.

• Integrated touch screen with live fiber viewing
• Auto-Center & Auto-Focus
• Built-in fiber endface analysis
• User-selectable acceptance profiles
• Stores results on device or export
• Bluetooth, WiFi, and USB connection capabilities

The "all-in-one" handheld solution for fiber inspection.

Simplified Component Test Management LightDirect module for MAP Series Platform

The MAP Passive Utility Module, mUTL-C1, provides a range of passive optical devices such as couplers, splitters, Mux/Demux modules and band-pass filters to simplify the integration of these devices into automated test systems

"All-in-one" handheld inspection and analysis solution for multifiber connectors such as MPO.

• Integrated touchscreen
• Live fiber viewing
• Auto-center, Auto-focus, Auto-pan/scroll
• Built-in fiber end-face analysis
• Audible sounds for Pass/Fail results
• User-selectable acceptance profiles
• Stores results on device or export
• WiFi, and USB connection to a PC and mobile devices
• All-day battery life
• Built in acceptance criteria to industry standards (IEC-61300-3-35)

The "all-in-one" handheld solution for fiber inspection.

SmartReporter by VIAVI is a specialized software tool designed to streamline and enhance test report generation in fiber optic network testing. It integrates with devices like the VIAVI SmartPocket V2 optical test sets, allowing users to download, analyze, and manage test data efficiently.

The VIAVI Cable SmartLink Mapper (Cable-SLM) is a revolutionary tool designed to simplify fiber optic testing in high-volume fiber environments. With its advanced features and user-friendly interface, the Cable-SLM enables technicians to perform tests efficiently and accurately, even without extensive expertise in fiber optics.Haut du formulaire

Fujikura's Wrapping Tube Cable (WTC) range, featuring SpiderWeb Ribbon (SWR) technology, offers an ultra-dense solution for outdoor optical networks, including FTTH. Compliant with the latest international standards, this range provides unmatched fiber density thanks to its ultra-compact SWR ribbons, while offering application versatility through its gel-free design and shielded and unshielded options.

OLP-88 TruePON tester is an innovative tool using GPON data analysis technology.

• Simple and user-friendly color touchscreen
• Compact and lightweight instrument (<1kg)
• Data storage of up to 10.000 test results
• USB, Ethernet and WiFi interfaces
• 12 hours of battery life
• Patchcord microscope version and P5000i digital inspection probe compatibility

It is the ideal test unit for field technicians dealing with GPON network service activation and for support teams in charge of resolving service complaints and identifying the sources of issues.

Of all fiber blowing machines, this cable and fiber blowing machine is very strong.
It is built and designed for rough conditions and for blowing in a huge variety of cables, fibers and ducts.

• Compatible with 8 to 25 mm cable diameter
• Duct diameter 18 to 70 mm
• Blowing speed up to 80 m/min
• Can blow with air and water
• Robust design

And do not forget! The PowerFlow is still easy to handle and operate.

MultiFlow RAPID is designed for relining of multiple micro ducts, but it can also be operated for single cables.

Fiber/Cable OD: 5.5-32 mm

Duct size OD: 10-63 mm

Preparation time: 8-10 min

Blowing distance: Up to 5,000 m

Floating distance with water: Up to 10,000 m

Blowing speed: Up to 80 m/min

Robust design

MiniFlow Rapid blowing machine is designed to answer to the FTTH networks indoor and outdoor deployment needs.

• Compatible with 3 to 12 mm cable diameter
• Duct diameter 7 to 20 mm
• Preparation time: 4 min
• Blowing distance (with air): Up to 3500 m
• Blowing speed up to 100 m/min
• Follow up of speed and cable length
• Display of cable propulsion strength
• Compact design

The FBPT tips are specially designed to be adapted on P-5000i inspection probe and bring an inspection solution to almost every kind of fiber optic connector.

Fusion splicer Fujikura 70S+ is no longer available since end of 2019.

It is replaced by Fusion splicer Fujikura 90S+.

A family of pocket-sized and low-cost optical power meters for the installation and maintenance of singlemode and multimode fiber optic networks.

• Rugged and pocket-sized design
• Large display combined with an easy-to-use interface
• Auto-wavelength recognition function for saving test time and error-free testing
• Internal data storage (1000 results)
• Bluetooth
• Report generation

The OLP-87 PON Power Meter enables simultaneous power measurement of all upstream & downstream wavelengths on live B/E/G-PON networks and is also compatible with next generation PON networks (XG-PON & 10G EPON).

The Viavi Solutions SmartClass Fiber MPOLx is the industry’s first dedicated optical loss test set that can perform all the test requirements for Tier 1 (Basic) certification using MPO fiber connectivity.

• Measures length
• Measures optical loss at multiple wavelengths
• Checks polarity for all 12 MPO fibers
• Provides native MPO testing directly on devices
• Delivers test results for all 12 MPO fibers in <6 seconds
• Provides native MPO end-face inspection and automated analysis for both trunk cables and bulkheads
• Dual wavelength optical light sources
• Encircled flux compliant
• 3.5” color touch screen interface on all MPOLx devices
• Generate certification report

The VIAVI OLP-39 variants are the industry’s first wavelength selective Passive Optical Network (PON) power meter enhanced with TruePON data analysis for fast, simultaneous measurement of both G-PON and XGS-PON downstream power levels and loss in PON networks.
TruePON analysis leverages PON-ID information to ensure more right first-time installations and to reduce fault finding times.

MP-60/-80 Miniature USB 2.0 Power Meters with FiberChek Pro Integration.

• Lightweight, small form-factor design for ultimateportability
• Generates measurements in dB, milliwatt, and dBm
• Automated data logging capabilities
• Automatic wavelength detection
• Compatible with FiberChek Pro fiber inspection and analysis software; integrated reporting capabilities within FiberChek Pro
• Simple, accurate, and instant push-button measurement results can be electronically archived, logged, and printed
• Dedicated for all single-mode and multimode applications including LAN, TELECOM, CATV, and DWDM testing

The SmartClass™ Fiber OLP-85 and -85P combine pass/fail fiber inspection and optical power measurement (OPM) into one solution.

With a 100 dB dynamic range, the OLP-85 and -85P optical power meters are perfect for any fiber-optic network power or loss test application.

Wavelength selective optical power meter for use in G/E-PON and XGS-PON/10G-EPON and hybrid systems.

• Single test port connection for dual wavelength measurement
• Simultaneous power level measurements for both G/E-PON & XGS-PON/10G-EPON services
• Storage for over 1000 test results and PC download capability
• Bluetooth low energy connectivity to the VIAVI Mobile Tech App
• 4-way powering - alkaline AA, NiMH AA rechargeable, AC power adapter and power over USB
• 3-year recalibration period

Applications

• Measuring optical power levels for both G/E-PON and XGS-PON/10G-EPON services
• Multi-service PON deployment and installs
• Network Build and Maintenance for
  • Enterprise/LAN
  • FTTA (fiber to the antenna) for 5G
  • FTTH

Visual fault locator FFL-050 is the ultimate tool to check continuity of fiber optic.

• Compact, ergonomic design for ultimate portability
• Visible wavelength is 650nm
• High powered laser (1mW) for single-mode (> 7 km) and multi-mode (> 5 km) connectors
• Continuous or Flash illumination

A family of pocket-sized and low-cost optical power meters for the installation and maintenance of singlemode and multimode fiber optic networks.

• Rugged and pocket-sized design
• Large display combined with an easy-to-use interface
• Auto-wavelength recognition function for saving test time and error-free testing
• Internal data storage (1000 results)
• Bluetooth

Bidirectional IL/ORL and OTDR fiber acceptance testing done with just one fiber connection and a single button press. A complete suite of fully automated fiber testing capabilities designed to streamline the construction and qualification of any type of fiber optic network.

FiberComplete PRO™ is a suite of fiber test and certification capabilities which enable field technicians to rapidly, reliably and cost effectively certify and troubleshoot any fiber link.

Providing everything a new or experienced fiber tech needs in one simple and fast solution with increased automation and test sequencing delivering up to an 80% time saving for fiber acceptance testing.

The new 25.A update is now available for the following VIAVI OTDRs: MTS-2000V2, MTS-4000V2, ONA-800, SmartOTDR & Optimeter.

Download the latest version by selecting your reflectometer model via the button below:

Download latest update

Loopback is a new tool that allow you to know average loss of each event directly on your OTDR.

No need to use Fibercable anymore to make an average measurement of your events.

If you want to know more about the solution, contact us !

StrataSync is a hosted, cloud-based solution that provides asset, configuration, and test data management for VIAVI instruments and ensures all instruments have the latest software and options installed.

• No annual subscription with StrataSync Core
• Simplified instrument management - ensure instruments are up to date with latest firmware, licenses, and options
• Operational efficiencies - deploy test capabilities temporarily where needed
• Manage both direct and contractor workforce with a single platformEliminate data/results lost with direct instrument upload, no more results handover via ftp, email, or USB stick

Smart Access Anywhere (SAA) allows secure, remote assistance for field techs directly on their instrument from a product or technical specialist in another location, including a central office or even another job site.

A solution that enables centralized support, on-demand test and live results analysis to support and coach technicians in the field – improving first time install/activation rates while reducing repeats and minimizing time-on-site.

Optical fiber connector inspection software allowing a PASS/FAIL analysis and control

• Compatible with PC and Android mobile (Fibercheck Pro Mobile)
• Editable PASS/FAIL analysis profiles following IEC standards
• Compatible with VIAVI Solutions inspection probe

Download the last software version by clicking on the following link

Fibercheck Pro

The hydraulic extension hose set comes with couplings and in 5m and 15m extension

CONTROL VALVE

The hydraulic control valve is dsigned for adjusting and controlling pressure and speed while blowing with the PowerFlow, MultiFlow and MiniFlow

EasyFlow SMART

Fiber blower with automatic mode

Nanowflow MAX fiber blowing machine is designed to answer the FTTH network needs

• Compatible with 0,8 to 4,5mm cable diameter
• Micro duct diameter 3 to 12,7 mm
• Preparation time : 3 min
• Blowing distance : Up to 1 200m
• Blowing speed up to 125m/min
• Electronic meter speed/counter with blowing distance
• Electronic protection technology to prevent damages to fiber cable

MicroFlow LOG fiber blowing machine is designed to answer the FTTH network needs

• Compatible with 0,8 to 6,5mm cable diameter
• Micro duct diameter 4 to 16mm
• Preparation time : 5 min
• Blowing distance : Upd to 2 500m
• Blowing speed up to 90m/min
• Electronic control unit
• Electronic meter speed/counter with presetting of blowing distance
• Adjustable motor torque load of fiber cable
• Electronic protection technology to prevent damages to fiber cable

Hydraulic driven fiber blowing machines are more effective and have a significantly lower total cost of ownership compared to an airdriven machine.

All-in-one handheld network and fiber testing

• Simplifies multi-technology testing with an all-in-one dual-100 G handheld unit
• Optimized for field use with a multitouch screen, scripted workflows, and clear pass/fail results
• Supports efficient best practices with repeatable methods and procedures
• Speeds up fiber optics testing, Ethernet service activation, and troubleshooting tests

The T-BERD/MTS-5800 is the industry’s smallest 10G handheld instrument supporting tests throughout the entire service life cycle including fiber characterization, service activation, troubleshooting, and maintenance.

• Simplifies multitechnology testing with an all-in-one dual-10 G handheld
• Optimized for field use with a multitouch screen, scripted workflows, and clear results
• Supports efficient best practices with repeatable methods and procedures
• Speeds fiber characterization, Ethernet service activation, and troubleshooting tests
• Empowers cell-site technicians to easily install and maintain back haul and front haul networks
• Avoid costly and dangerous tower climbs

ONMSi Optical network test and monitoring system for Core, Metro, Access and FTTH networks.

• FAST: ONMSi monitors the network 24/7 and alarms when there is a problem, automatically and accurately quantifies and locates the problem, then dispatches the technician right to the site – ALL within minutes!
• SCALABLE: ONMSi allows users to start small and then expand at any rate needed
• COMPREHENSIVE: ONMSi supports both P2P (Metro/Core/Access) & P2MP (PON) networks – all the way to the ONT
• PROVEN: ONMSi has a strong track record with over 250 optical networks currently being monitored
• FLEXIBLE: ONMSi is designed to be easily integrated within customer orgatization (web enabled application, multiple API, domains architecture)

The FTH-5000 Optical Test Unit combines optical time-domain reflectometry (OTDR) and optical-switch technology to provide continuous OTDR monitoring of multiple fibers anywhere in the network.

The FTH-5000 works with the VIAVI ONMSi and SmartOTU solution to help automate and improve the monitoring of your network performance.
VIAVI is the worldwide leader in OTDR manufacturing and Optical Network Monitoring, receiving the coveted Frost & Sullivan Fiber Optics Test Equipment Market Leader Award for fiber-optic test equipment six years in a row.

A single OTU-5000 unit monitoring 72 fibers of 100km and more occupies only 1RU.

SmartOTU is a standalone remote fiber test solution that can automatically detect and locate faults and monitor fiber networks.

• Reduce Mean-Time-To-Repair by locating fiber faults in minutes
• Improve network security by quickly pinpointing any fiber intrusion
• Avoid service disruptions by detecting any fiber degradation in advance
• Improve service assurance and SLA contracts
• Ready to deploy out of the box with no local PC or Server required

SmartOTU is the best solution to reduce cost of fiber optic monitoring! SmartOTU monitors both dark and lit fiber and it is ideal for network security protection.

MicroFlow Touch fiber blowing machine is designed to answer the FTTH network needs

• Compatible with 0,8 to 6,5mm cable diameter
• Micro duct diameter 4 to 16mm
• Preparation time : 5 min
• Blowing distance : Upd to 2 500m
• Blowing speed up to 90m/min
• Electronic control unit
• Electronic meter speed/counter with presetting of blowing distance
• Adjustable motor torque load of fiber cable
• Electronic protection technology to prevent damages to fiber cable
